CARACTERÍSTICAS DE HARDWARE

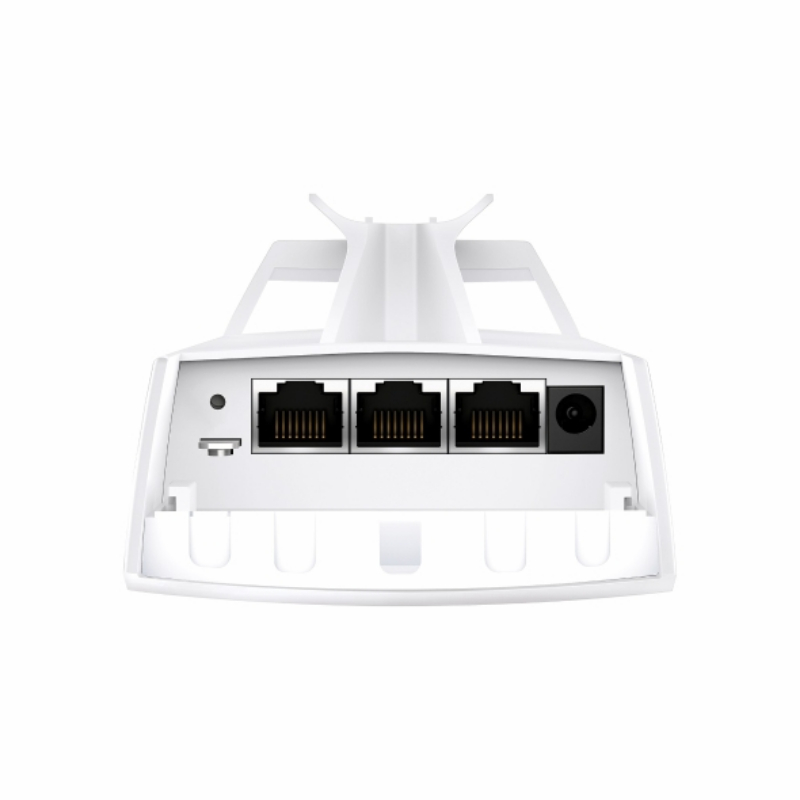

Interfaz     3x Gigabit Ethernet Ports*6
Botones     Reset
Fuente de Alimentación     12V DC / 24V Passive PoE (Passive PoE adapter included.)
Consumo de Potencia     11.5W
Dimensiones     3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
Tipo de Antena     Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 7.0 dBi
Horizontal:70°, Vertical: 70°
Carcasa resistente a la intemperie     IP65
Montaje     Pole Mounting (Accessories included)
CARACTERÍSTICAS INALÁMBRICAS
Coverage     1000m5
Estándares Inalámbricos     IEEE 802.11 a/b/g/n/ac
Frecuencia     5 GHz
Tasa de Señal     5 GHz: Up to 867 Mbps
Funciones Inalámbricas     " Mesh*4
" MU-MIMO: 5G 2x2 MU-MIMO DL
" Load Balance
" Seamless Roaming(802.11r)
" Beamforming
" Airtime Fairness
" Multiple SSIDs:8
" Wireless Statistics
" Wireless Schedule
" Reboot Schedule
" RADIUS Accounting
" MAC Authentication
" Static IP/Dynamic IP
Seguridad Inalámbrica     " VLAN
" Access Control
" Rogue AP Detection
" Captive Portal Authentication*4
" Maximum number of MAC Filter: 4,000
" WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Potencia de Transmisión     " CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);

" FCC:
<22dBm (5 GHz band1/4)
GESTIÓN
Omada App     Yes
Restore & Backup     Yes
Firmware update via Web     Yes
NTP     Yes
Gestión Centralizada     " Omada Hardware Controller (OC300)
" Omada Hardware Controller (OC200)
" Omada Software Controller
" Omada Cloud-Based Controller
Acceso a la nube     Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED de control ON / OFF     Yes
Control de Gestión de Acceso MAC     Yes
SNMP     v1, v2c, v3
SSH     Yes
Gestión basada en Web     Yes
Otros
Certificaciones     CE, FCC, RoHS
Contenido del Paquete     " EAP211-Bridge KIT
" Passive PoE Adapter
" Power Cord
" Installation Guide
" Mounting Kit
Factores Ambientales     " Operating Temperature: -40 °C70 °C (-40 °F158 °F);
" Storage Temperature: -40 °C70 °C (-40 °F158 °F);
" Operating Humidity: 10%90% non-condensing;
" Storage Humidity: 5%90% non-condensing
