Especificaciones

    Processor / System Bus
    Intel®Xeon® Processor Scalable Family

    Generation
    4th/5th

    Core Logic
    Intel® C741 Chipset

    Memory
    Total slot:
    32 (8-channel per CPU, 16 DIMM per CPU)
    Capacity:
    Maximum up to 4TB
    Memory type:
    4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)
    5th: 5600/4800 MHz (1DPC)/4400(2DPC)
    Memory size:
    64GB, 32GB, 16GB RDIMM
    256GB, 128GB RDIMM 3DS

    * Refer to www.asus.com/support for more information

    Expansion Slots
    Up to 9 slots
    6 x PCIe G5 x8 link or 3 x PCIe G5 x16 link (FHFL or FHHL)
    1 x PCIe G5 x16 link (FHHL)
    1 x OCP 3.0/PCIe Gen5 x16 link (FHHL)
    1 x PCIe G5 x16, LP

    Storage
    12 x 3.5”/2.5" hot-swap bay
    8 x NVMe/SAS*/SATA + 4 NVMe/SATA
    Optional 2 x 2.5" Rear
    Hot-swap Storage Bays (Up to 2x NVMe/SATA)
    (*HBA/RAID card is required to support SAS hard drives)

    Drive Bays
    12 x 3.5”/2.5" hot-swap bay
    2 x M.2 slot

    System Fan
    4

    Networking
    4 x1Gbe(Intel I350-AM4) RJ45 port or
    2 x 10Gbe(Intel X710-AT2) RJ45 port

    Graphic
    Aspeed AST2600 64MB

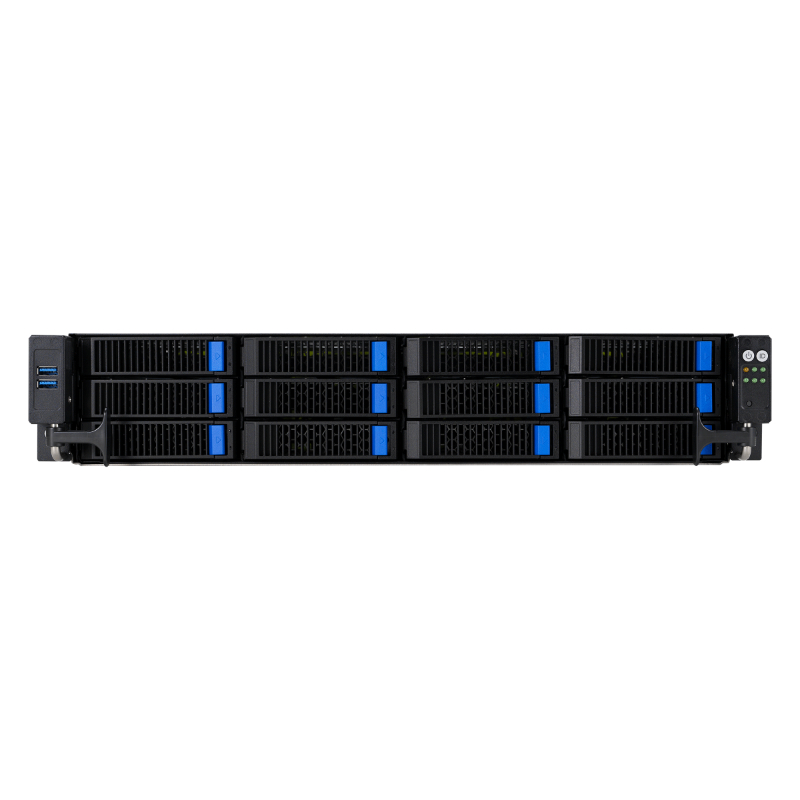

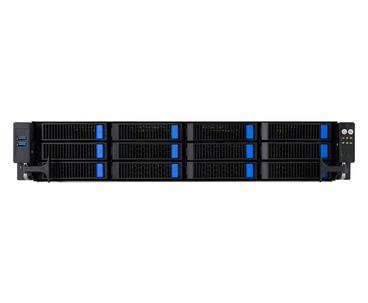

    Front I/O Ports
    2 x USB 3.2 Gen1 ports

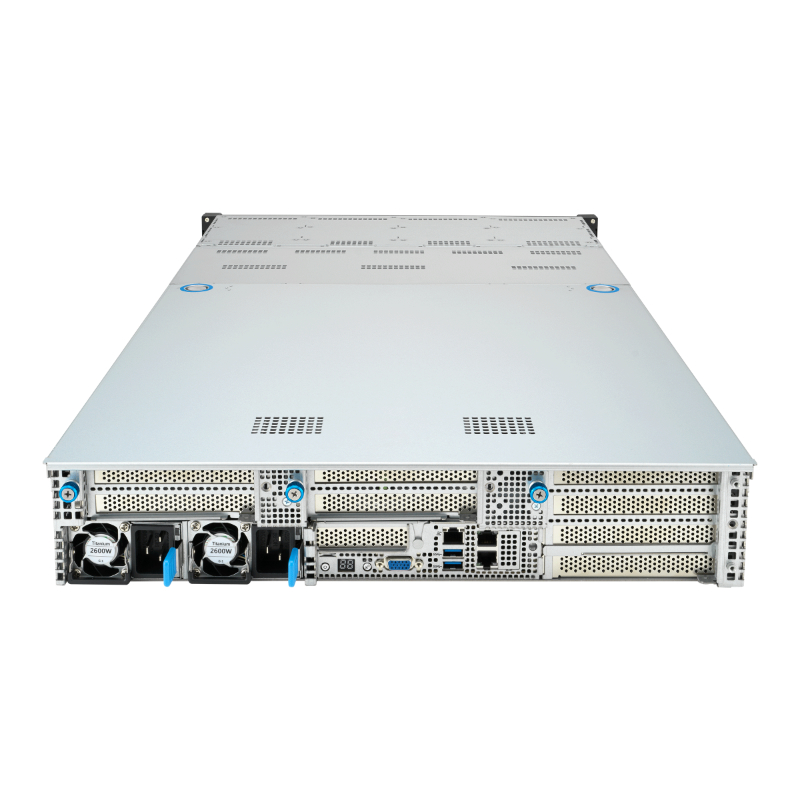

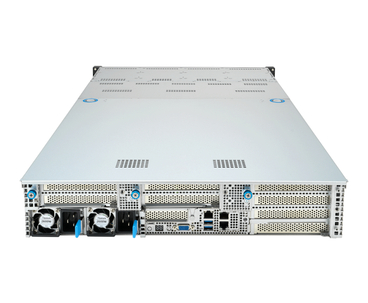

    Rear I/O Ports
    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x RJ-45 Management LAN port
    2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)

    Switch/LED
    Front Switch/LED:
    1 x Power Switch (w/ LED)
    1 x Location Switch (w/ LED)

    Dimensions
    840mm x 447mm x 88mm

    Form Factor
    2U

    Weight
    26.855kg

    Power Supply
    1+1 Redundant AC: 2600W/1600W 80 PLUS Titanium/ Platinum Power Supply

    CPU Heatsink/ Cooler
    Standard/ EVAC Heatsink
