ASUS

PN:90MB1590-M0EAY0

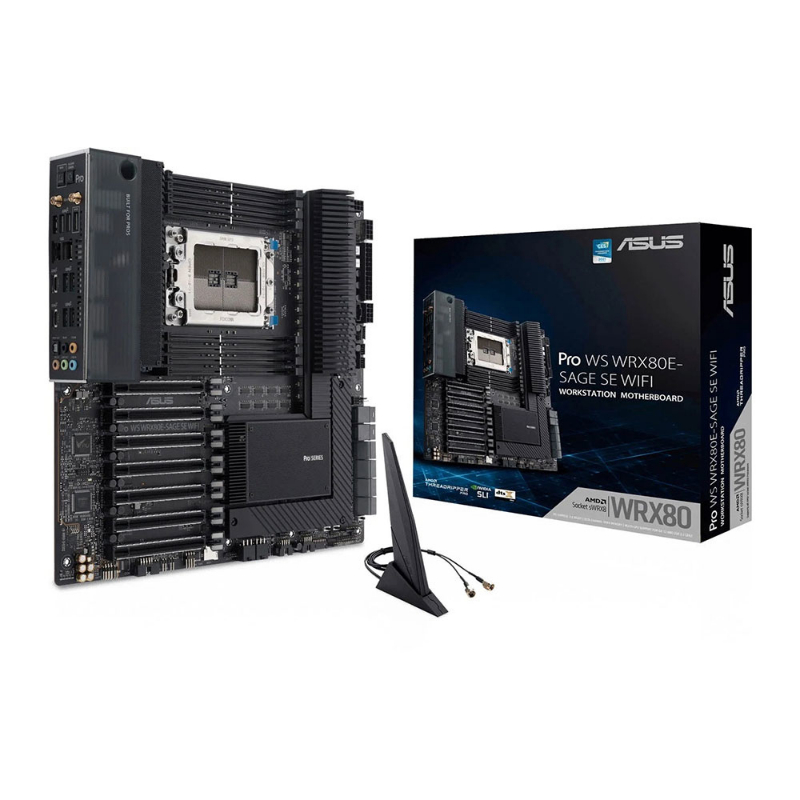

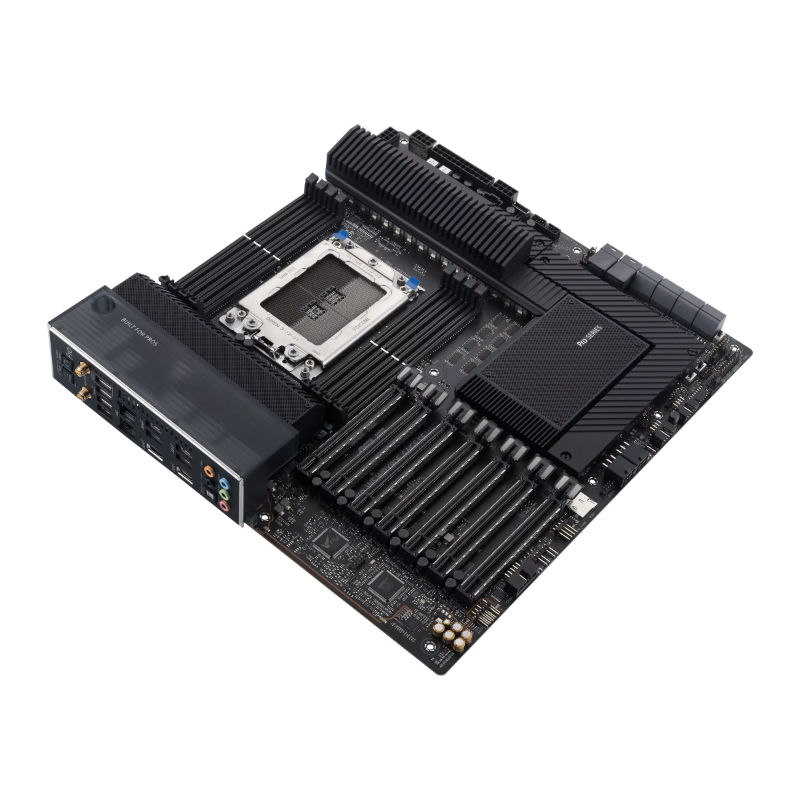

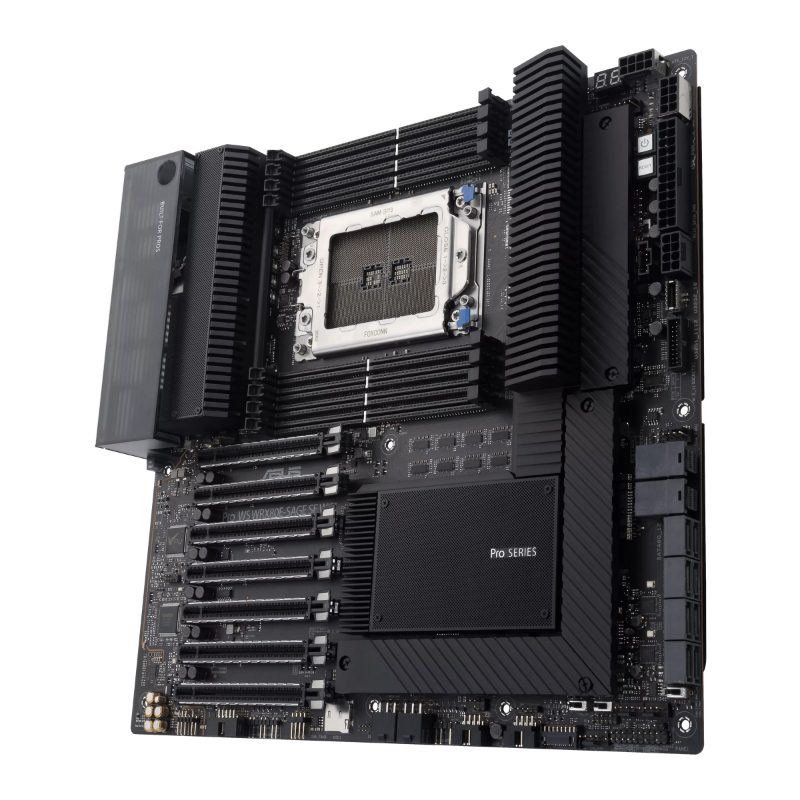

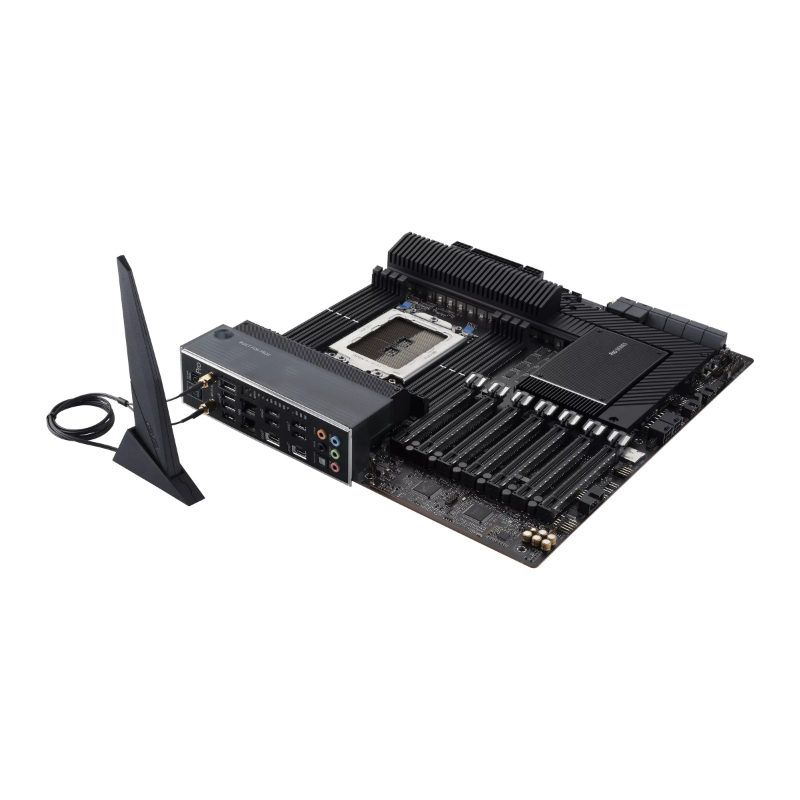

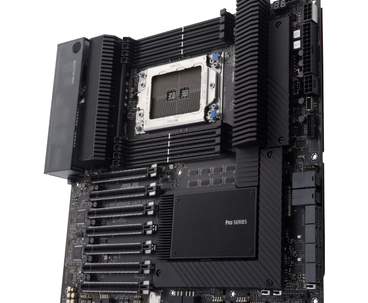

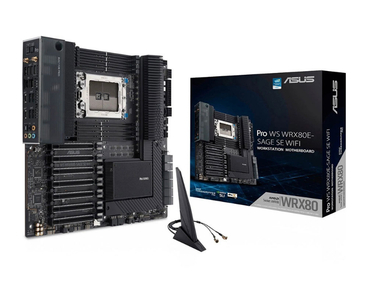

PLACA BASE Pro WS WRX80E-SAGE SE WIFI ASUS

sWRX8/ AMD WRX80/ EATX/ WiFi 6, BT 5.2

1.088,57€ PVP

Comprar

Consultar

● Chipset: AMD WRX80 ● Formato: E-ATX(EEB) ● Hdmi: No ● Imagen Salida: SIN SALIDA/NECESITA TARJETA GRAFICA ● Memoria Maxima: 2TB ● Microprocesador Integrado: No ● Multi-Grafica: Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology ● Nº Bancos De Memoria: 8 ● Nº Conexiones SATA: 8 ● Nº USB 2.0: 4 Internos ● Nº USB 3.2 Gen1: 2 Internos ● Nº USB 3.2 Gen2: 8 Traseros, 2 Tipo C Traseros, 1 Tipo C Interno ● Pci: 7 PCIe x16 ● Raid: Si ● SATA 6Gb/S: 8 ● Socket: AMD sWRX8 ● Tecnologia De Memoria: DDR4 ● Thunderbolt: No ● USB 3.0: Si ● USB3.1 Interno: Si

ASUS

PN:90MB1590-M0EAY0

PLACA BASE Pro WS WRX80E-SAGE SE WIFI ASUS

sWRX8/ AMD WRX80/ EATX/ WiFi 6, BT 5.2

1.088,57€ PVP

Comprar

Consultar

●Chipset: AMD WRX80
●Formato: E-ATX(EEB)
●Hdmi: No
●Imagen Salida: SIN SALIDA/NECESITA TARJETA GRAFICA
●Memoria Maxima: 2TB
●Microprocesador Integrado: No
●Multi-Grafica: Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology
●Nº Bancos De Memoria: 8
●Nº Conexiones SATA: 8
●Nº USB 2.0: 4 Internos
●Nº USB 3.2 Gen1: 2 Internos
●Nº USB 3.2 Gen2: 8 Traseros, 2 Tipo C Traseros, 1 Tipo C Interno
●Pci: 7 PCIe x16
●Raid: Si
●SATA 6Gb/S: 8
●Socket: AMD sWRX8
●Soporta Optane: No
●Tecnologia De Memoria: DDR4
●Thunderbolt: No
●USB 3.0: Si
●USB3.1 Interno: Si

Model
Pro WS WRX80E-SAGE SE WIFI

News & Updates
Socket sWRX8

CPU
AMD Socket sWRX8 for AMD Ryzen™ Threadripper™ PRO Series Processors*
* Refer to www.asus.com for CPU support list.

Chipset
AMD WRX80 Chipset

Memory
8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, 3DS R-DIMM and LR-DIMM Memory*
8 Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

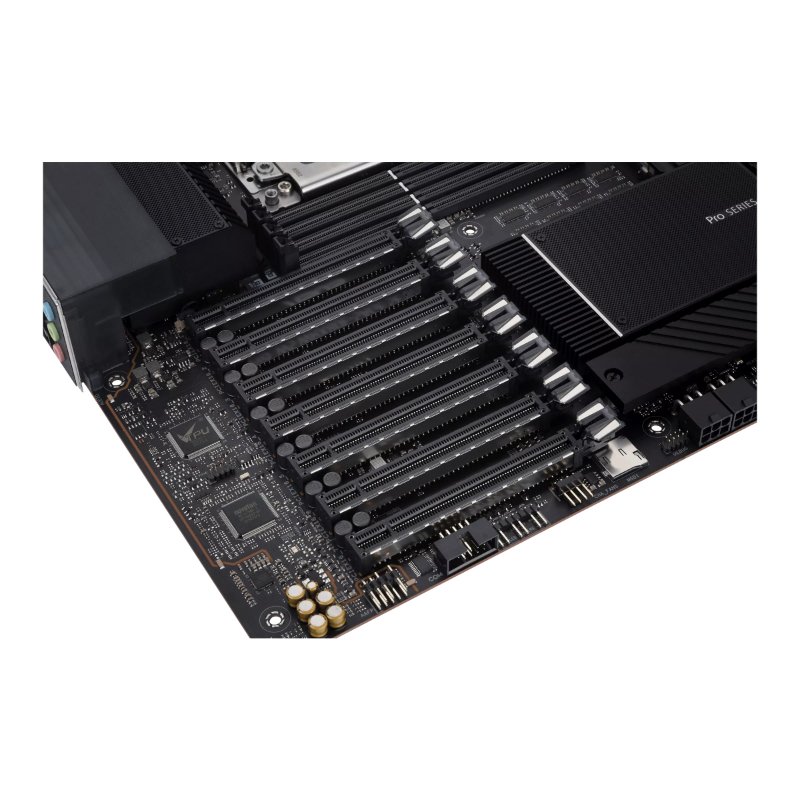

Expansion Slots
AMD Ryzen™ Threadripper™ PRO Series Processors
7 x PCIe 4.0/3.0 x16 slot(s)*
* Support PCIe bandwidth bifurcation for RAID on CPU function.

Multi-GPU Support
Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology

Storage
Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen™ Threadripper™ PRO Series Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*
AMD WRX80 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*
4 x SATA 6Gb/s ports
ASMedia ASM1061 Controller
4 x SATA 6Gb/s ports

Supports NVMe RAID configurations via M.2 storages
*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.

Ethernet
1 x Intel® X550-AT2 dual 10Gb Ethernet

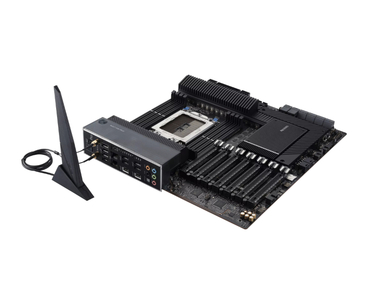

Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2

USB
Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio
Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

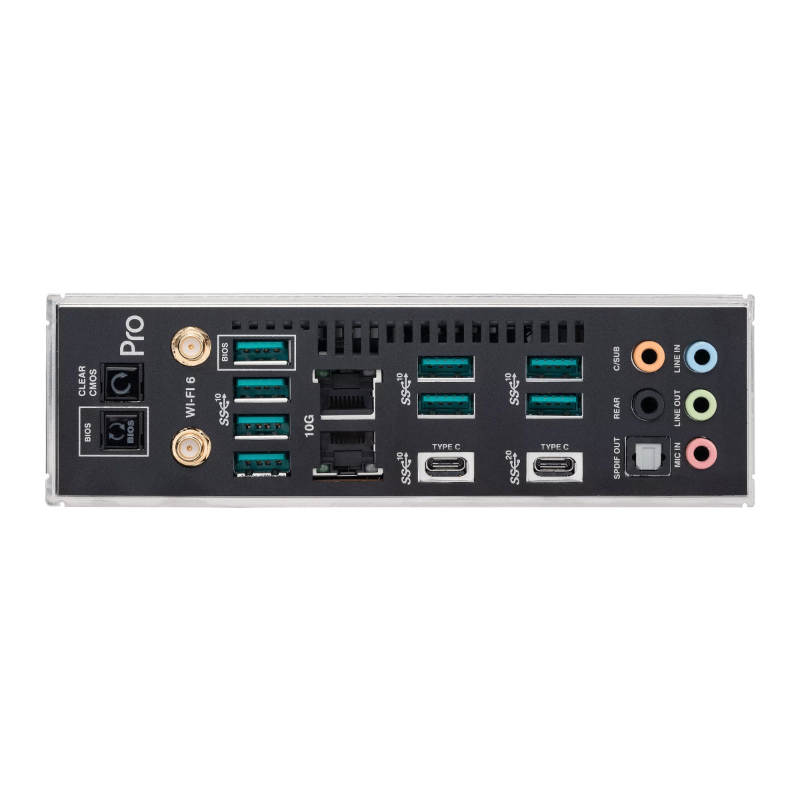

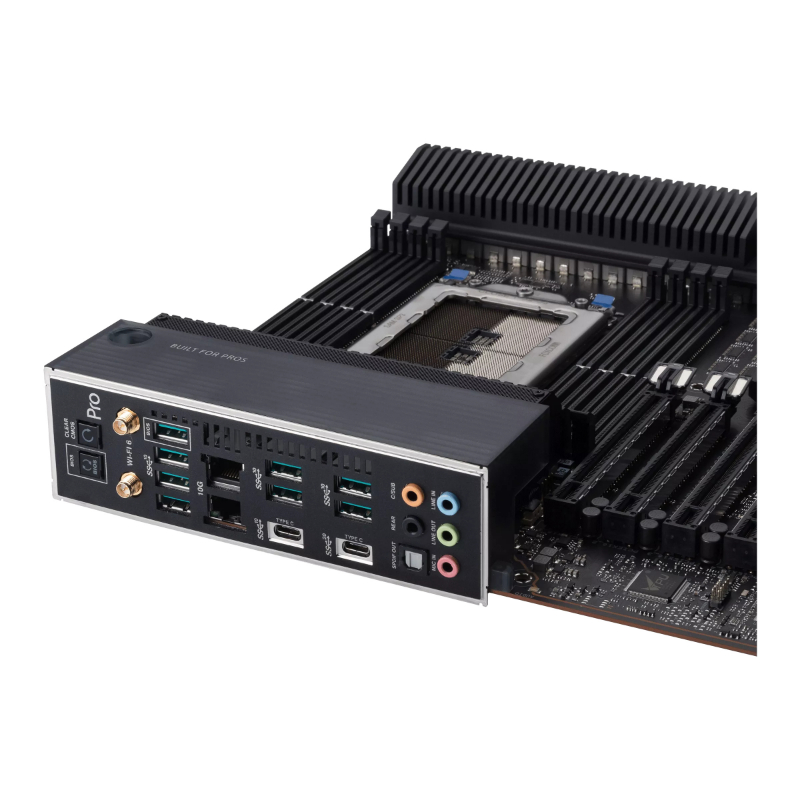

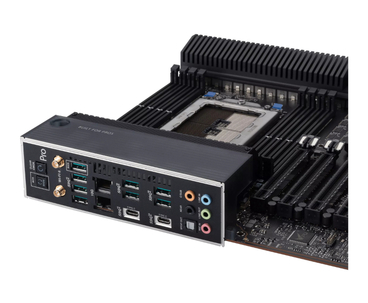

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®)
1 x Wi-Fi Module
2 x Intel® X550-AT2 dual 10Gb Ethernet ports
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
6 x 4-pin Chassis Fan header(s)
1 x VRM heatsink Fan header
1 x Chipset Fan header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
2 x 6-pin PCIe Graphics Card connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
2 x U.2 slots
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
BMC Related
1 x BMC switch
1 x IPMI switch
1 x Messange LED header
1 x Micro SD card socket
2 x LAN LED header(s)
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header
1 x VPP_I2C header
Miscellaneous
1 x COM Port header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x RTC Battery header
1 x Thermal Sensor header

Special Features
ASUS Q-Design
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
Bespoke Motherboard Design & Business Focused Features
- Event Log in ASMB9-iKVM
- 24/7 Reliability
- Overcurrent Protection
ASMB9-iKVM for KVM-over-Internet

Software Features
ASUS Exclusive Software
Armoury Crate
ASUS CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS:X® Ultra
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables
6 x SATA 6Gb/s cables
1 x VGA cable
Miscellaneous
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas

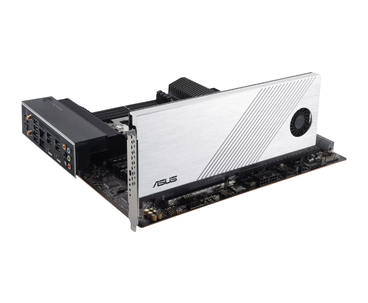

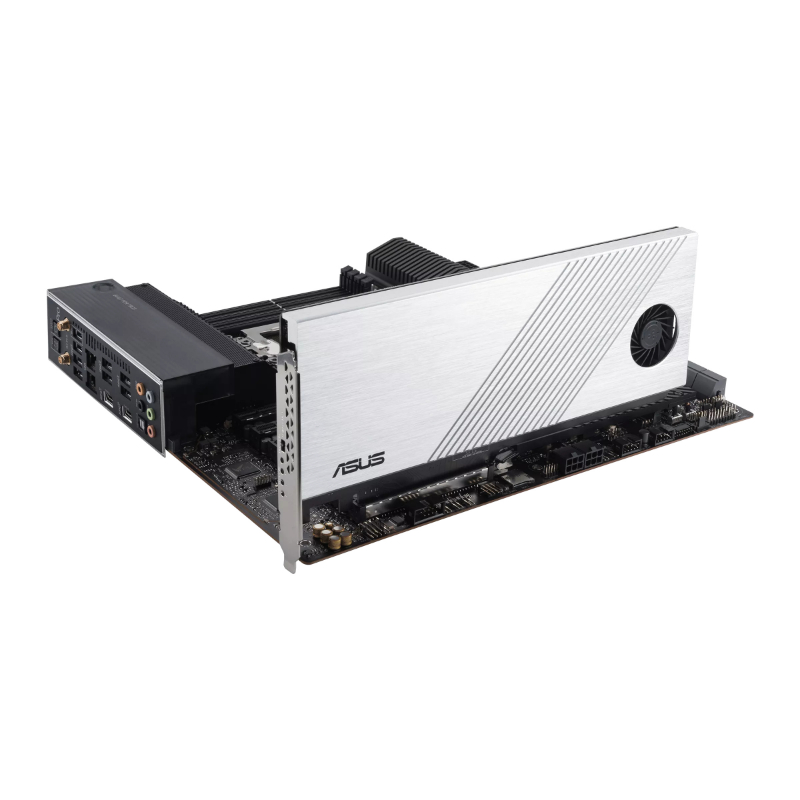

1 x Hyper M.2 X16 Gen 4 Card
4 x M.2 Rubber Package(s)
6 x M.2 SSD screw package(s)
1 x Q-connector
Installation Media
1 x Support DVD
Documentation
1 x User manual

Operating System
Windows® 10 64-bit

Form Factor
EATX(EEB) Form Factor
12.2 inch x 13 inch ( 30.98 cm x 33.02 cm )

PN:90MB1590-M0EAY0

PLACA BASE Pro WS WRX80E-SAGE SE WIFI ASUS

sWRX8/ AMD WRX80/ EATX/ WiFi 6, BT 5.2

1.088,57€ PVP

Consultar

Las especificaciones e imágenes están sujetas a cambios sin previo aviso. Todas las marcas y logotipos son propiedad de sus respectivos fabricantes. La foto puede mostrar otros productos que se venden por separado.
