Especificaciones

Hardware Version

F1

Interfaces (ports)

• 16 x 10/100/1000BASE-T
• 4 x 100/1000Mbps combo

Port Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
• IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• IEEE 802.3x Flow Control

Network Cables

UTP Cat. 5, Cat. 5e (100 m max.)


Duplex Mode

Full/Half-duplex for 10/100 Mbps
Full-duplex for 1000 Mbps

Media Interface Exchange

Auto MDI/MDIX adjustment for all twisted-pair ports

Switching Capacity

40 Gbps

Transmission Method

Store-and-forward

MAC Address Table

8K entries

Static MAC Addresses

256 entries

Maximum 64 Byte Packet
Forwarding Rate

29.8 Mpps

Packet Buffer Memory

4.1 Mbits

CPU Memory

DDR3 128 MB

Flash Memory

32 MB

Power (per device)

Link/Active/Speed (per port)

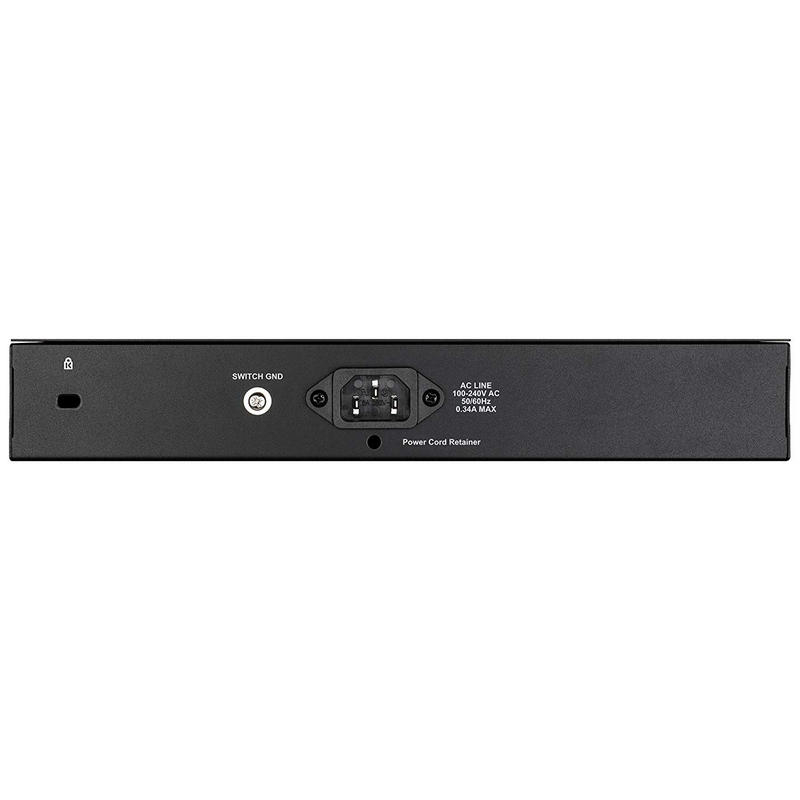

Power Input

100 to 240 V AC 50/60 Hz internal universal power supply

Maximum Power Consumption

13.02 W

Standby Power Consumption

5.56 W

Acoustics

0 dB(A)

Heat Dissipation

44.41 BTU/hr

Operating Temperature

-5 to 50°C

Storage Temperature

-20 to 70°C

Operating Humidity

0% to 95% relative humidity

Storage Humidity

0% to 95% relative humidity

Dimensions (L x W x H)

280 x 180 x 44 mm

Weight

1.75 kg

Certifications

EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC

MTBF

1,087,100 hours
