Especificaciones:

General

Device interfaces: 16 x 10/100/1000 Mbps LAN ports
Standards:

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Surge Protection: Embedded 4 kV surge protection on all Gigabit Ethernet ports

Funcionalidad

Switching Capacity: 32 Gbps
Advanced Features:
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 9,216 bytes jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Auto-negotiation for each port
• Quality of Service (8 queues, strict mode)

Data Transfer Rates

• Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)
• Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex)
• Gigabit Ethernet: 2000 Mbps (full-duplex)

Transmission Method: Store-and-forward
MAC Address Table Size: 8000 entries
Max. Packet Forwarding Rate: 23.81 Mbps

Físico

LED Indicators:

• Per port: Link/Activity/Speed
• Per device: Power

Media Interfa x Exchange: Auto-MDI/MDIX adjustment for all ports
Dimensions: 280 x 126 x 44mm
Weight: 0.87kg

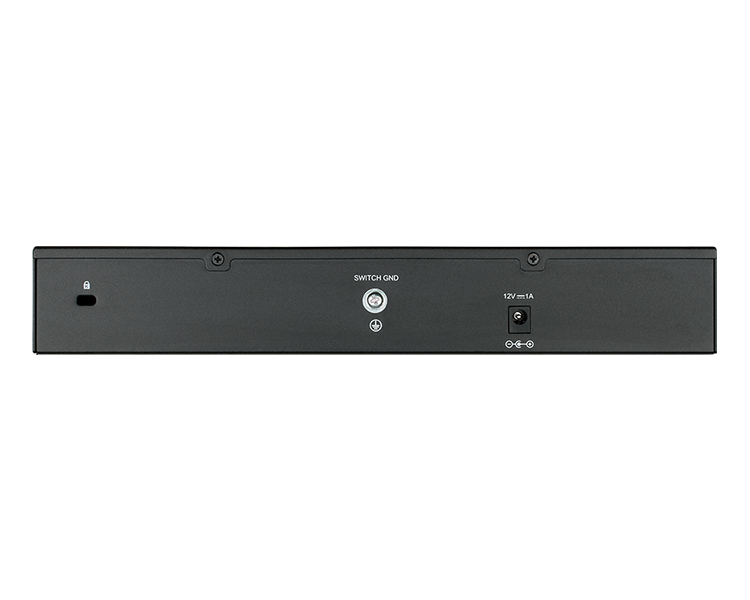

Power Input: 12V / 1A (external PSU)
Power Consumption:
• Standby: 4.1 W
• Maximum: 11.7 W
